30-80 KW

Transit Series

Ceiling-mounted | Sequential Charging
Ceiling-mounted charging infrastructure reclaims valuable floor space. Purpose-built for transit depots and commercial fleet environments where every square metre matters.
Configure your solution
Designed and manufactured in Canada

Overhead Suspension Architecture

Ceiling-mounted cabinet and cable management system preserves floor space for vehicle parking, maintenance operations, and personnel movement. Eliminates trip hazards and improves depot safety.

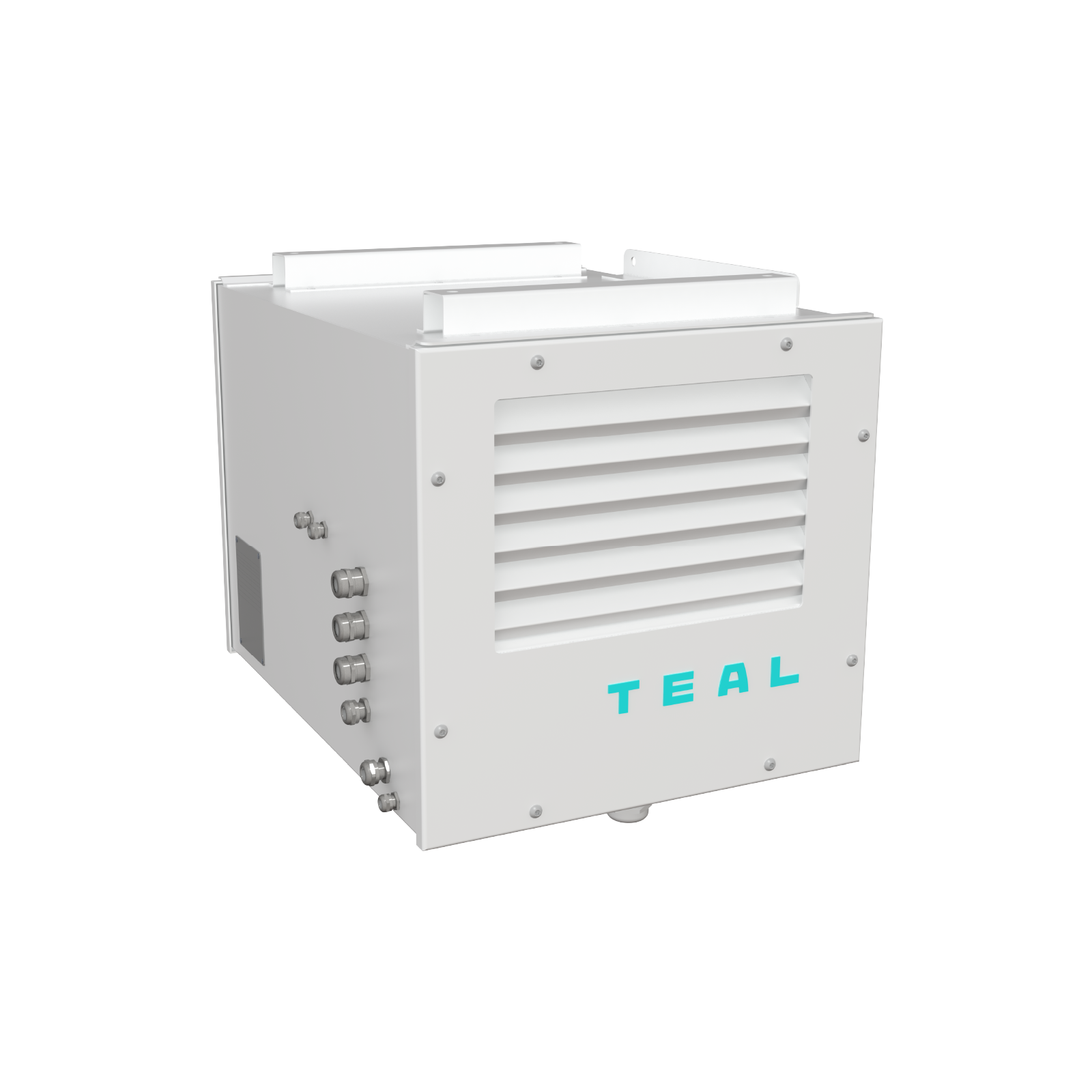

Programmable Power Delivery

Configure 30kW for overnight charging, 40kW for extended charging windows, or 80kW for fast opportunity charging during tight schedules.

Fleet Management Integration

RFID authentication and fleet management integration ensure controlled access and operational visibility. Track vehicle charging status and energy consumption by vehicle or route.
Level Three charging without any equipment at the floor-level.
The Transit Series is a perfect solution for municipal transit, commercial fleets, and depot environments with limited floor space.

Configuration Options

Power Output
30kW | 40kW | 80kW
Cable Length
13ft Standard | 18ft Extended
Connector Standard
CCS1 | CCS2 | NACS | Custom
Charging Management
Standard switch| RFID | Scheduled charging
Contact us to Configure Your Solution

Specifications

Performance
Operating Temperature
-50°C to +50°C (-58°F to 122°F) without derating
Extended Range
Power Derating
Starts at +52°C/126°F
Humidity
5%-95% RH, non-condensing
Altitude
≤2000m operation
Efficiency
>97.5% at full load
Thermal Management
Connectivity & Standards
Communication Protocols
OCPP 1.6J and 2.0.1 compliant
Charging Standards
ISO 15118 (CCS1/CCS2/NACS)
Networking
Ethernet and 4G connectivity options
Payment Systems
PCI-compliant contactless payment terminal
Authentication
RFID access control available
Power
Power Range
30kW, 40kW, 80kW
Output Current
100A (30kW), 133A (40kW), 266A (80kW) continuous output
Cable Technology
Naturally cooled cables (NCC)
Voltage Range
150-1000V DC output
Power Factor
>0.99
Charging Ports
Construction & Installation
Enclosure
Aluminum, powder-coated, NEMA 3R rated
Dimensions
519mm H × 495mm W × 675mm D (20.5″ H × 19.5″ W × 26.5″ D)
Cable Length
Adjustable reach based on ceiling height (typically 3-5m)
Weight
Max 150-250kg - varies by configuration
Installation
Ceiling mounted - professional installation required for structural integration
Contact to Request Full Product Documentation

Offering best-in-class performance and features

Rugged Cabinet Design Built for 24/7  commercial operations
Extreme Climate Rating -50°C to +50°C operation without derating
Dynamic Power Delivery Smart daisy chaining optimizing power distribution
Flexible Payments offer charging with RFiD or Smart Contactless Payment
Flexible Configurations Public and commercial fleet applications
OEM & Partnership Solutions Custom and white-label opportunities available

Connect with us

Our commercial charging specialists provide detailed power analysis and site planning. From assessment through commissioning, we ensure your solution delivers optimal performance and return on investment.
Contact Sales
