80-240 kW

Optimum Series

Compact footprint | Up to 800A continuous output
Deliver charging from 80kW to 240kW in the industry's most compact cabinet. Start with what you need. Expand as demand grows.
Configure your solution
Designed and manufactured in Canada

Modular Power

Start with the power you need today. Scale as demand grows. Same compact footprint accommodates 80kW to 240kW without site modifications or equipment replacement.

Dynamic power sharing in 40 kW steps

40kW granularity optimizes energy delivery based on real-time vehicle requirements. Reduces energy waste, minimizes demand charges, and maximizes charging efficiency.

Intelligent Status Communication

Smart lighting and touchscreen display gives users charging status updates quickly and simply.

Narrow Footprint

Optimum’s cabinet is narrow enough to fit between two standard parking stalls.
The world's most compact 240kW charger. Built to scale with your operation.
Optimum is purpose-built for 24/7 commercial operations with commercial-grade engineering.

Configuration Options

Power Output
80kW | 120kW | 160kW | 200kW | 240kW
Connector Standard
CCS1 | CCS2 | NACS | Up to 18ft cable length
Cabinet Colour
White/Grey Default | Contact for custom colours
Payment
No payment | RFID | Credit and debit payment via touchscreen
Contact us to Configure Your Solution

Specifications

Performance
Operating Temperature
-50°C to +50°C (-58°F to 122°F) without derating
Extended Range
Operates to +70°C (+158°F)
Power Derating
Starts at +52°C/126°F
Humidity
5%-95% RH, non-condensing
Altitude
≤2000m operation
Efficiency
>97.5% at full load
Thermal Management
Connectivity & Standards
Communication Protocols
OCPP 1.6J and 2.0.1 compliant
Charging Standards
ISO 15118 (CCS1/CCS2/NACS)
Networking
Ethernet and 4G connectivity options
Payment Systems
PCI-compliant contactless payment terminal
Authentication

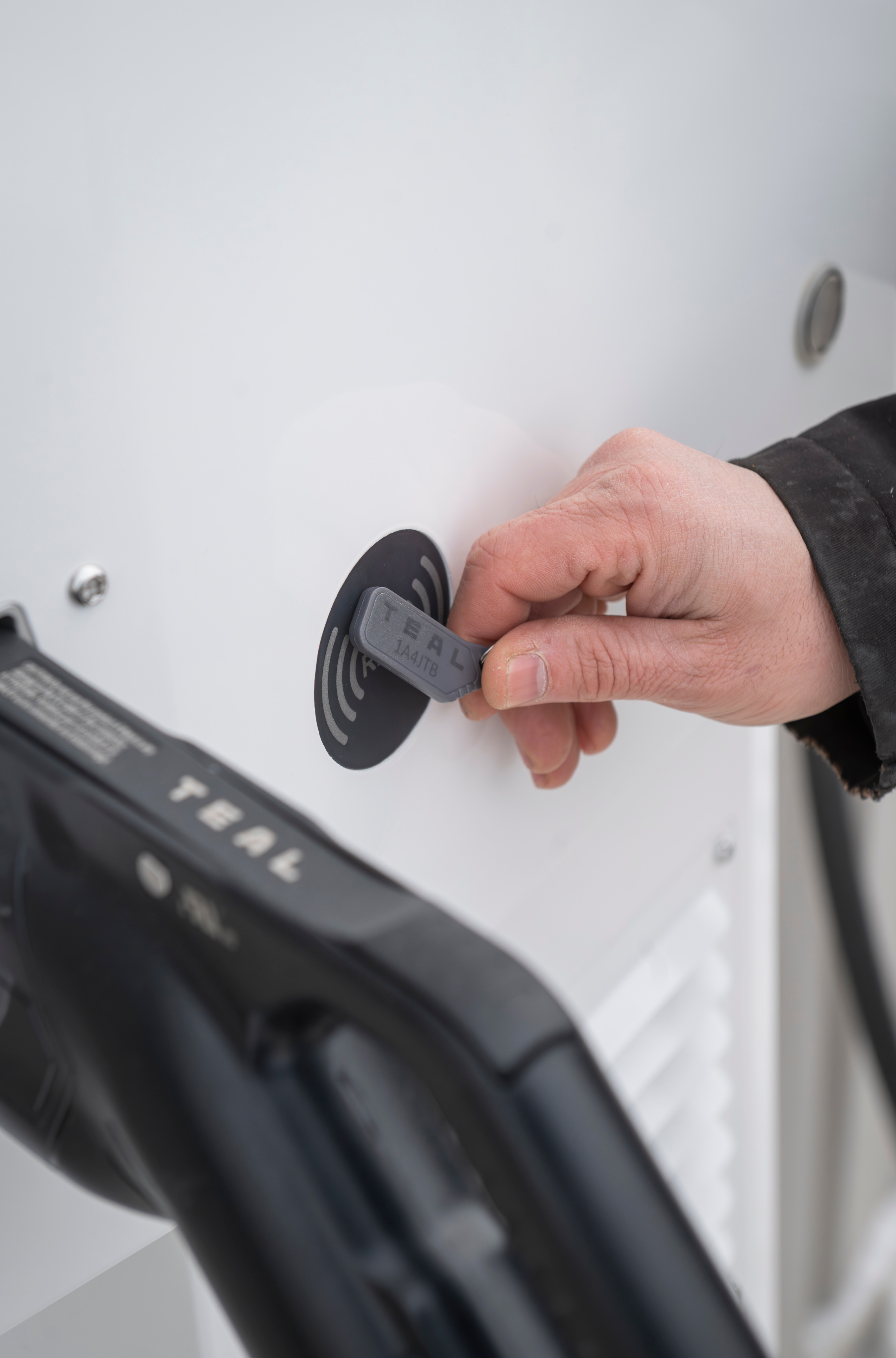

RFID access control available
Power
Power Range
80kW, 120kW, 160kW, 200kW, 240kW
Output Current
266A (80kW) to 800A (240kW) total current
Cable Technology
Naturally cooled cables (NCC) - 250A/350A continuous, 400A/500A
boost
Voltage Range
150-1000V DC output
Power Factor
>0.99
Charging Ports
Construction & Installation
Enclosure
Aluminum, powder-coated, NEMA 3R rated
Dimensions
1,850mm H × 580mm W × 720mm D (72.83in H x 22.83in W x 28.35in D)
Cable Length
Weight
Max 485kg (240kW configuration)
Installation
Surface mount or moveable pad
Contact to Request Full Product Documentation

Offering best-in-class performance and features

Rugged Cabinet Design Built for 24/7  commercial operations
Extreme Climate Rating -50°C to +50°C operation without derating
Dynamic Power Delivery Smart daisy chaining optimizing power distribution
Flexible Payments offer charging with RFiD or Smart Contactless Payment
Flexible Configurations Public and commercial fleet applications
OEM & Partnership Solutions Custom and white-label opportunities available

Connect with us

Our commercial charging specialists provide detailed power analysis and site planning. From assessment through commissioning, we ensure your solution delivers optimal performance and return on investment.
